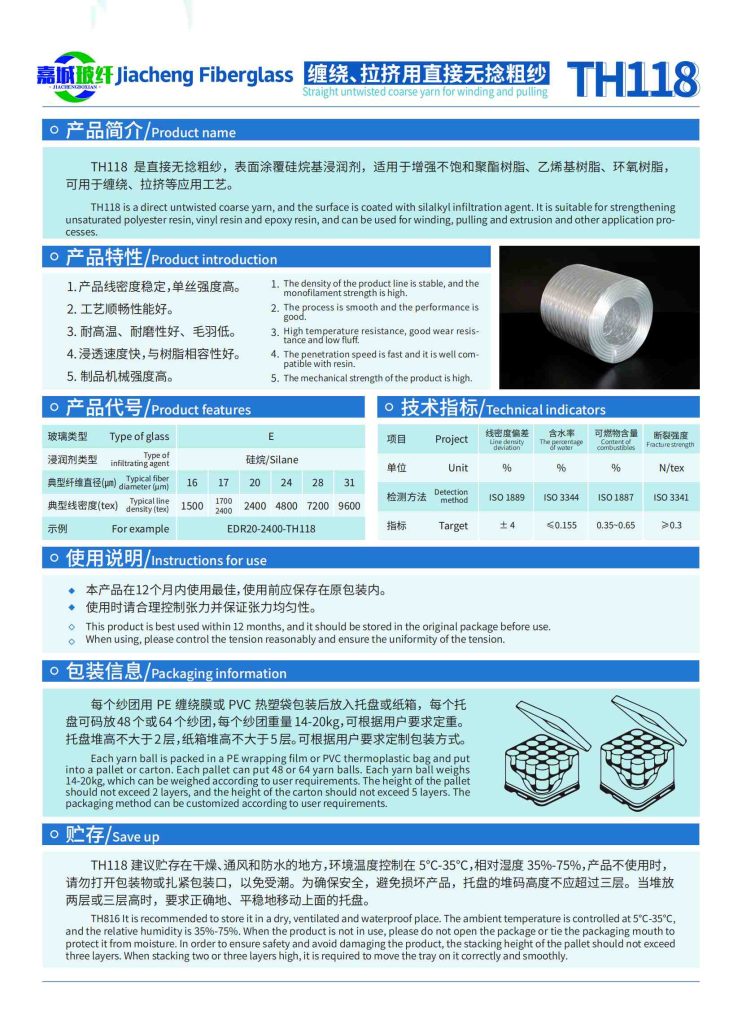

缠绕、拉挤用TH118

2025年5月28日直接无捻粗纱无捻粗纱直接无捻粗纱1530

缠绕、拉挤用直接无捻粗纱TH118

Straight untwisted coarse yarn for winding and pulling

产品简介 / Product Introduction

TH118 是直接无捻粗纱，表面涂覆硅烷基浸润剂，适用于增强不饱和聚酯树脂、乙烯基树脂、环氧树脂，可用于缠绕、拉挤等应用工艺。
TH118 is a direct untwisted coarse yarn, and the surface is coated with silane infiltration agent. It is suitable for strengthening unsaturated polyester resin, vinyl resin, and epoxy resin, and can be used for winding, pulling, extrusion, and other application processes.

产品特性 / Product Features

线密度稳定，单丝强度高
The density of the product line is stable, and the monofilament strength is high.
工艺顺畅性能好
The process is smooth, and the performance is good.
耐高温、耐磨性好、毛羽低
High temperature resistance, good wear resistance, and low fluff.
渗透速度快，与树脂相容性好
Fast penetration speed and excellent compatibility with resin.
制品机械强度高
High mechanical strength of the product.

产品代号 / Product Specifications

中文	English	参数/Parameters
玻璃类型	Type of glass	E
浸润剂类型	Type of infiltrating agent	硅烷/Silane
典型纤维直径 (μm)	Typical fiber diameter (μm)	16, 17, 20, 24, 28, 31
典型线密度 (tex)	Typical line density (tex)	1500, 1700, 2400, 4800, 7200, 9600
示例	Example	EDR20-2400-TH118

技术指标 / Technical Indicators

项目	Project	单位/Unit	检测方法/Detection Method	指标/Target
线密度偏差	Line density deviation	%	ISO 1889	±4
含水率	Moisture content	%	ISO 3344	≤0.155
可燃物含量	Combustible content	%	ISO 1887	0.35~0.65
断裂强度	Fracture strength	N/tex	ISO 3341	≥0.3

使用说明 / Instructions for Use

本产品在12个月内使用最佳，使用前应保存在原包装内。
This product is best used within 12 months and should be stored in the original package before use.
使用时请合理控制张力并保证张力均匀性。
When using, control the tension reasonably and ensure uniformity.

包装信息 / Packaging Information

每个纱团用 PE 缠绕膜或 PVC 热塑袋包装后放入托盘或纸箱，每个托盘可码放48或64个纱团，每个纱团重量14-20kg，可根据用户要求定量。托盘堆高不大于2层，纸箱堆高不大于5层。可根据用户要求定制包装方式。
Each yarn ball is packed in PE wrapping film or PVC thermoplastic bags and placed on pallets or in cartons. Each pallet holds 48 or 64 yarn balls. Weight per yarn ball: 14-20kg (customizable). Pallet stacking height ≤2 layers; carton stacking height ≤5 layers. Custom packaging available.

贮存 / Storage

TH118 建议贮存在干燥、通风和防水的地方，环境温度控制在5°C-35°C，相对湿度35%-75%。不使用时请勿打开包装或扎紧包装口，以免受潮。托盘堆码高度不应超过三层，堆放时需平稳操作。
TH118 should be stored in a dry, ventilated, and waterproof environment (temperature: 5°C-35°C; humidity: 35%-75%). Do not open the package or leave it unsealed when unused. Pallet stacking height must not exceed 3 layers; handle with care during stacking.
