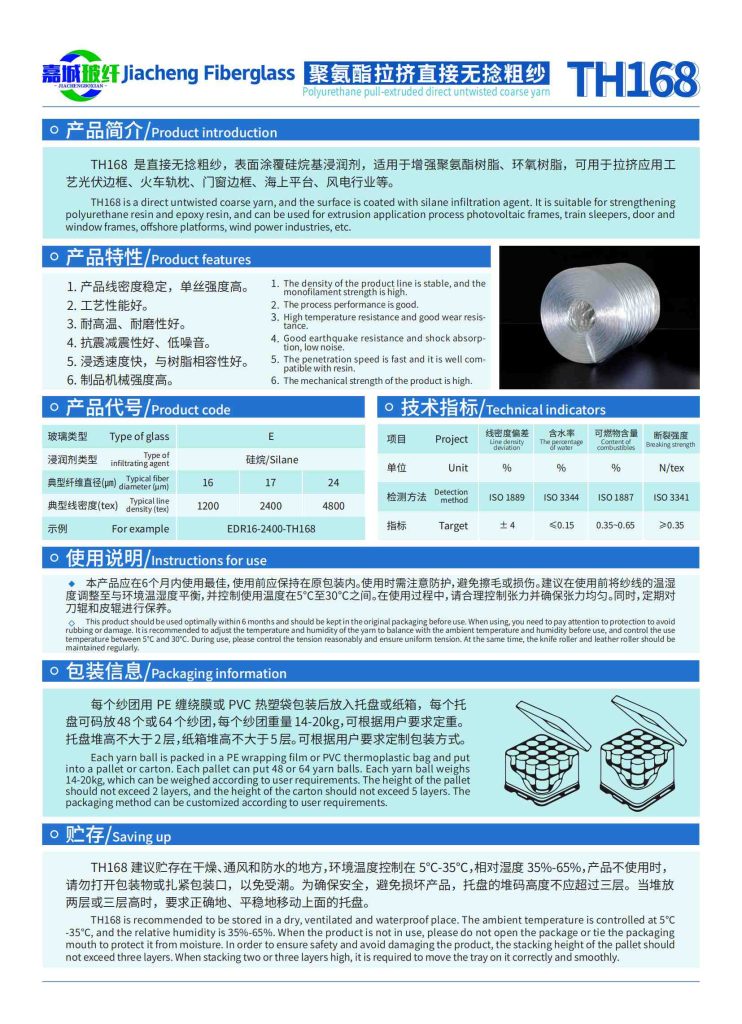

直接无捻粗纱TH168

2025年5月26日直接无捻粗纱无捻粗纱1750

聚氨酯拉挤直接无捻粗纱TH168
Polyurethane pull-extruded direct untwisted coarse yarn

产品简介 / Product Introduction

TH168 是直接无捻粗纱，表面涂覆硅烷基浸润剂，适用于增强聚氨酯树脂、环氧树脂，可用于拉挤应用工艺光伏边框、火车轨枕、门窗边框、海上平台、风电行业等。
TH168 is a direct untwisted coarse yarn, surface-coated with silane-based infiltrating agent. It is suitable for reinforcing polyurethane resin and epoxy resin, and can be used in pull-extruded applications such as photovoltaic frames, train sleepers, door/window frames, offshore platforms, and wind power industries.

产品特性 / Product Features

产品线密度稳定，单丝强度高
Stable linear density and high monofilament strength.
工艺性能好
Excellent processing performance.
耐高温、耐磨性好
High temperature resistance and wear resistance.
抗震减震性好、低噪音
Good vibration damping and low noise.
渗透速度快，与树脂相容性好
Fast resin penetration speed and good compatibility.
制品机械强度高
High mechanical strength of finished products.

产品代号 / Product Code

玻璃类型	Type of glass	E
浸润剂类型	Type of infiltrating agent	硅烷/Silane
典型纤维直径 (μm)	Typical fiber diameter (μm)	16, 17, 24
典型线密度 (tex)	Typical linear density (tex)	1200, 2400, 4800
示例	For example	EDR16-2400-TH168

技术指标 / Technical Indicators

项目	Project	线密度偏差 (%)	含水率 (%)	可燃物含量 (%)	断裂强度 (N/tex)
单位	Unit	%	%	%	N/tex
检测方法	Detection method	ISO 1889	ISO 3344	ISO 1887	ISO 3341
指标	Target	±4	≤0.15	0.35~0.65	≥0.35

使用说明 / Instructions for Use

本产品应在6个月内使用最佳，使用前应保持在原包装内。使用时需注意防护，避免擦毛或损伤。建议在使用前将纱线的温湿度调整至与环境平衡，并控制温度在5°C至30°C之间。使用过程中请合理控制张力并确保均匀。定期维护刀辊和皮辊。
This product should be used optimally within 6 months and kept in original packaging before use. Avoid abrasion and damage. Adjust yarn temperature/humidity to ambient conditions (5°C–30°C). Control tension uniformly and maintain knife/leather rollers regularly.

包装信息 / Packaging Information

每纱团14-20kg，PE膜或PVC袋包装，托盘可放48/64个，堆高≤2层；纸箱堆高≤5层。可定制包装。
Each yarn ball (14-20kg) packed in PE/PVC. Pallets hold 48/64 balls (max 2 layers); cartons max 5 layers. Custom packaging available.

贮存 / Storage

贮存于干燥、通风、防水处（5°C–35°C，湿度35%–65%）。未使用时勿拆包装。托盘堆高≤3层，需平稳搬运。
Store in dry, ventilated, waterproof area (5°C–35°C, 35%–65% RH). Do not open unused packages. Pallet stacking ≤3 layers; handle with care.
